ZTE Product

1：Wireless Base Station: ZXSDR BS8900B、ZXSDR BS8900A、ZXSDR BS8800.

2：WDM Production: ZXONE 9700OTN,ZXONE 8300&8500,ZXONE 8700OTN,ZXMP M600,ZXMP M720,ZXMP M721OTN,ZXMP M820OTN,ZXWM M920OTN,ZXUCP A200.

3：NG-SDH/MSTP Series,ZXMP S200,ZXMP S325ZXMP S330ZXMP S385ZXONE 5800,ZXMP P230NetNumenTM U31(BN)UNM.

ZTE Wireless Macro Base Station

ZXSDR BS8900B、ZXSDR BS8900A、ZXSDR BS8800

Large Capacity Integrated Macro Base Station Series
ZTE Macro Base Station (BS) series include three types: large capacity indoor base station ZXSDR BS8800, modularized outdoor base station ZXSDR BS8900A, and large capacity outdoor base station ZXSDR BS8900B. Based on the distributed architecture, the baseband unit B8200 and a variety of indoor RF units RSUs are combined and assembled in the base station cabinet. Among them, the outdoor BSs can also provide transmission, lightning protection, power supply and batteries, and reserved room for other devices, supporting fully functional outdoor BS solutions.
The products support ZTE unique 2T4R RF module, with a single module supporting 2 sectors or 2T4R, reducing cost and improving the performance of network; support power amplifier with high efficiency, contributing to very low power consumption; support GSM/ UMTS/LTE (GUL) multi-band multi-mode, saving CAPEX and OPEX significantly.

Large Capacity Indoor Macro BS ZXSDR BS8800 Highlights
Large Capacity: One BS8800 accommodates 2 BBUs and 12 RSUs, and connects with Remote Radio Unit (RRU) to support more cells.
Mature Application: Already being commercially applied in more than 100 countries. The excellent performance is guaranteed.
Modularized Outdoor Macro BS ZXSDR BS8900A Highlights
Modularized Design: Supports centralized or distributed cabinet installation according to the practical conditions.
Cost Effective: BS8900A contains baseband units, RF units, lightning protection, power supply and battery, and reserved room for transmission device, providing cost-effective and fully functional outdoor site solution.
Large Capacity Outdoor Macro BS – ZXSDR BS8900B Highlights
All-in-One Solution: Single rack of BS8900B contains baseband units, radio modules, lightning protection, power supply and battery, and reserved room for transmission device, providing large capacity and fully functional outdoor site solution..
Large Capacity: Single rack accommodates 2 BBUs and 9 2T4R RSUs, and connects with Remote Radio Unit (

ZTE  WDM

ZXMP M600,ZXMP M720,ZXMP M721 OTN,ZXMP M820 OTN

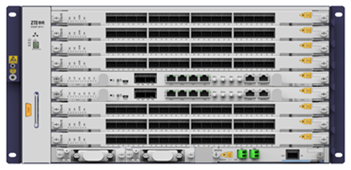

ZXMP M721 Metro Edge OTN Equipment
ZXMP M721 is one of products for Metro Edge iOTN solution. It features smart stature, big capability, low power consumption and high reliability.

ZXMP M721 DX63 sub-rack(DC input)

ZXMP M721 CX66 sub-rack(DC input)

Product Features
1. High integration
ZXMP M721 sub-rack is a highly integrated compact iOTN product.Most of the boards occupy only one sinlge slot.Sub-rack heights are 1RU,2RU,3RU and 6RU,which can effectively save room space and power consumpiton,thus significantly reducing operating and maintenace costs and adapting to the requirement for green network decreasing.
2. Powerful transmission performance
40×10G/100G DWDM application, 18×2.5G or 10×2.5G+8×10G CWDM application and systems smooth upgrade.
DWDM system supports multi-span transmission without electrical relay (18×22dB, 7×30dB, 1×45dB etc.). 2.5G CWDM can support 28dB transmission, and 10G CWDM can reach 80KM.
3. Diversity access service type
ZXMP M721 can access any-rate-service (2Mbit/s – 100Gbit/s), and supports intelligent cognition, the port supports automatic identification of type of services.
² SDH service, E1,STM-1/4/16/64/256, OC-3/12/48/192, POS.
² Ethernet service, FE, GE, 10GE,40GE,100GE.
² Storage and video streaming service, 1G/2G/4G/8G/10G FC, ESCON, FICON, DVB-ASI, SD-SDI/HD-SDI/SDI-3G,InfiniBand 2.5G,InfiniBand 5G,InfiniBand 10G.
² OTN, OTU1, OTU2, OTU2e, OTU1f,OTU3,OTU4.
Other service,CPRI option2,CPRI option3,CPRI option4,CPRI option5,CPRI option6,CPRI option7.
4. Universal switching platform
ZXMP M721 adapts the packet OTN architecture.The brand-new All in One design can support OTN/Packet/TDM universal switching.It can implement access,swtiching and transmission of various service in a unified way.It greatly relieves IP bandwidth pressure and performs intelligent grooming of IP traffic.Total switching capacity of switching sub-rack(CX66) is 840Gbit/s at most.
5. L2 Function
ZXMP M721 supports L2 function,8×FE/GE or 4×FE/GE+4×10GE→10GE.
6. APO Function
ZXMP M721 supports APO function based on the OCH layer an the OMS section.
7. Flexible service grooming
M721 supports DSS (Distributed Service Switch platform) based on ODU0/ODU1/ODUflex.
Services aggregation: 4-10×Any-rate-service→OTU1, 4-22×Any-rate-service→OTU2.
10G-any → OTU2, support single channel, double channels, integrated protection OTU cards.
8. Synchronization
ZXMP M721 supports out-band / in-band 1588V2 transmission and synchronous Ethernet transmission.
9. Reliable protection scheme
ZXMP M721 supports control card/power card 1+1 backup and OMS/OCH 1+1,VC-12 1+1 and ODUk 1+1 protection. All the protection switching time of OMS 1+1/OCH 1+1,VC-12 1+1 and ODUk 1+1 are less than 50ms in compliance with ITU-T standards.
10. Optional OSC/ESC
ZXMP M721 supports OSC (Optical Supervisory Channel) and ESC (Electrical Supervisory Channel) providing flexibility for deployment.
